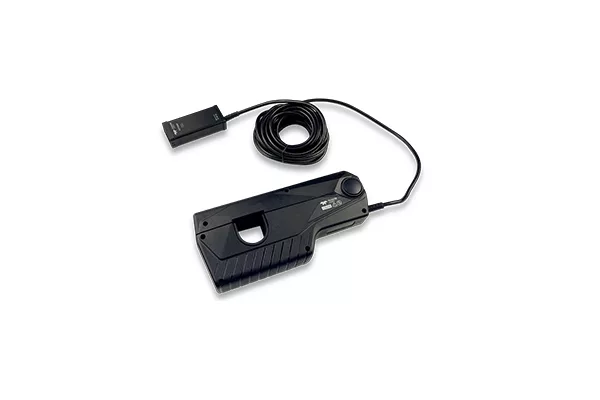

Teledyne LeCroy introduces the CP1000, a 1000 Arms AC/DC current probe with DC to 1.5 MHz bandwidth, designed for accurate, high‑current measurements in motor drives, traction inverters, and high‑power systems. With a large split‑core aperture (33 mm), long cable for safer testing (6-meter), and seamless ProBus integration, the CP1000 delivers fast setup, reliable results, and the harmonic visibility engineers need for confident design and validation.

Teledyne LeCroy current probes are available in a variety of models for a wide range of applications. The full range of Teledyne LeCroy current probes includes models with bandwidths up to 100 MHz, peak currents up to 1400 A and sensitivities to 1 mA/div. Teledyne LeCroy current probes are often used in applications such as the design and test of switching power supplies, motor drives, electric vehicles, and uninterruptible power supplies.

Related Resources

Passive Plus, Inc. Announces Broadband Resistor in 2010 Case Size
Micross Introduces H+ Screened DC-DC Converters for LEO Constellations and New Space Missions
New Vishay Intertechnology Space-Grade Common Mode Choke Provides EMI Filtering for GaN and SiC Switching Applications
  • CP030B - 30A, 50MHz Current Probe
  • CP030B-3M - 30 A, 10 MHz Current Probe - AC/DC, 30 A rms, 50 A Peak Pulse, 3 meter cable
  • CP031 - 30A, 100MHz Current Probe
  • CP031A - 30A, 100MHz High Sensitivity Current Probe
  • CP150B - 150 A, 10 MHz Current Probe - AC/DC, 150 A rms, 500 A Peak Pulse
  • CP150B-6M - 150 A, 5 MHz Current Probe - AC/DC, 150 A rms, 500 A Peak Pulse, 6 meter cable
  • CP500 - 500 A, 2 MHz Current Probe - AC/DC, 500 A rms, 700 A Peak Pulse
  • CP1000 - 1000 A, 1.5 MHz Current Probe - AC/DC, 1000 A rms, 1400 A Peak Pulse, 6 meter cable
  • DCS025 - Deskew Calibration Source for Teledyne LeCroy current probes.

Current Sensor Adapter

The CA10 is a programmable and customizable interface device that seamlessly incorporates third party current transducers/transformers with Teledyne LeCroy oscilloscopes or motor drive analyzers. The easy to use interface provides the ability for the CA10 to be programmed to contain the specifications of the current sensor allowing it to automatically correct for the gain or attenuation and display results in Ampere units. This allows the third party device to be recognized and operate as if it were a Teledyne LeCroy probe.

CA10 - Programmable ProBus Current Sensor Adapter for use with third party current sensors.
