As an ANSI/VITA member, Samtec, is proud to release new connector sets compliant with the revised ANSI/VITA 42.0-2016 XMC Standard. VITA 42 XMC defines an open standard for supporting high-speed, switched interconnect protocols on an existing, widely deployed form factor.
This revision further defined the concept for the preferred Standard connectors in XMC applications including:
- Solder ball attachment replaced Paste-On-Pad (POP) for improved solder joints
- Low Insertion Force (LIF) sockets to ease mating and un-mating
- Tin-lead alloy available as a solder option
- Revised ASP catalog numbers
- 12 mm stack height

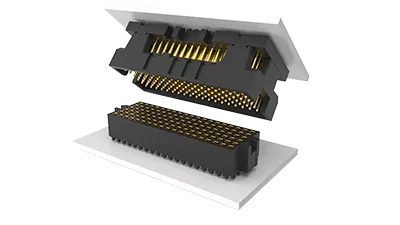

Based on these guidelines, Samtec is proud to release 12 mm stack height options expanding the existing family of ANSI/VITA 42 XMC Standard connectors. Chosen for high reliability stemming from the multipoint-of-contact SamArray® sockets and robust solder ball design, the updated connector set has been specified for current XMC systems.
Samtec's growing catalog of XMC connectors enable switched communication between a mezzanine card and its carrier. In addition to transmitting sensitive high-speed data, these connectors provide power, ground, and auxiliary signals to the mezzanine. The 12 mm mated connector set further optimizes XMC cards for use in wider modules, designed for 1.00" pitch cage systems.
“We were excited at the opportunity to update VITA 42.0, bringing the specified connectors to the state-of-the-art,” said David Givens, Standards Director. “Since the Standard was launched, Samtec supported hundreds of system designers who expressed the need for an alternative to Paste-On-Pad attachments while providing Low Insertion Force contacts.”
For more information on Samtec’s complete line of VITA 42 XMC or SamArray® solutions, please email our technical experts at XMC@samtec.com or visit https://www.samtec.com/xmc.
